4000W DC 24V 48V to AC 110V 220V Toroidal Off Grid Pure Sine Wave Power Inverter for Solar System 574345197MM Dimensions

Name: 4000W DC 24V 48V to AC 110V 220V Toroidal Off Grid Pure Sine Wave Power Inverter for Solar System 574345197MM Dimensions
Brand: SZSSTH
Price: 2 USD

Quality 4000W DC 24V 48V to AC 110V 220V Toroidal Off Grid Pure Sine Wave Power Inverter for Solar System 574*345*197MM Dimensions for sale

Brand Name : SZSSTH

Model Number : RS4000

Place of Origin : Guangdong, China

Price : CN¥2,721.30/pieces 1-99 pieces

Network : SDK

Type : DC/AC Inverters

Output Type : Single

Output Current : 35A/70A

Output Frequency : 50/60Hz

Size : 574*345*197MM

Weight : 41.6KG

Efficiency : 91%, 91%

Product name : 24V/48V Inverter Home Low Frequency Pure Sine Wave Inverter

Rated power : 4KW

Surge power : 12000VA

Waveform : pure sine wave

Transfer Time : less than 20ms

Battery Voltage : 24V/48V

Protection function : over load, low voltage, over voltage, over heat protection

Warranty : 12 months

AC Voltage : 110V-240V

Customized support : Software reengineering

Contact Now

4000W DC 24V 48V to AC 110V 220V Toroidal Off Grid Pure Sine Wave Power Inverter for Solar System 574*345*197MM Dimensions

Model	RS2000	RS3000		RS4000		RS5000		RS6000
Rated Power	2000W	3000W		4000W		5000W		6000W
INPUT
Voltage	100/110/120Vac, 220/230/240Vac
Selectable Voltage Rang	Wide Range: 75vac - 138vac, 155vac - 275vac (For Home Appliances)
Selectable Voltage Rang	Narrow Rang: 82vac -138vac, 165vac - 275vac (For Peronal Computer)
Frequency Range	40-70Hz(50Hz/60Hz)
OUTPUT
AC Voltage Regulation	Vout (±10V)
Surge Power	4000VA	9000VA		12000VA		15000VA		18000VA
Efficiency (Peak)	88%	91%
Transfer Time	＜20ms	＜10ms
Waveform	Pure Sine Wave
BATTERY
Battery Voltage	24V	24V	48V	24V	48V	24V	48V	24V	48V
Charge Current	35A	50A	25A	70A	35A	75A	45A	75A	50A
Fast Charge Voltage	28.6VDC	28.6 VDC	57.2 VDC	28.6 VDC	57.2VDC	28.6 VDC	57.2 VDC	28.6 VDC	57.2 VDC
Float Charge Voltage	27.4VDC	27.4 VDC	54.8 VDC	27.4 VDC	54.8VDC	27.4 VDC	54.8 VDC	27.4 VDC	54.8 VDC
Over Charge Voltage	33.0VDC	33.0 VDC	66.0 VDC	33.0 VDC	66.0 VDC	33.0 VDC	66.0 VDC	33.0 VDC	66.0 VDC
Battery low Voltage Alarm	21.0VDC	21.0 VDC	42.0 VDC	21.0 VDC	42.0VDC	21.0 VDC	42.0 VDC	21.0 VDC	42.0 VDC
Battery low Voltage Shutdown	20.0VDC	20.0 VDC	40.0 VDC	20.0 VDC	40.0 VDC	20.0 VDC	40.0 VDC	20.0 VDC	40.0 VDC
Protection	Over Charging, Over Temp, Over Battery voltage, Over load, short-circuit
Operating environment temperature	55℃
Cooling	Intelligent Fan
Display	Color LCD
Specification Setting	By LCD or Position Machine: Charging Current, Battery Type, Input Voltage, Output Frequency, Wide and Narrow rang of AC Input voltage, Power-Saver Model, AC Priority or Battery Priority
PHYSICAL
Dimension DWHmm	390222178	500258190		574345197		574345197		574345197
Net Weight (kgs)	15	25.2	24.6	34.4	33.8	37.9	38.2	41.6	40.5
ENVIRONMENT
Humidity	5~95% Relative Humidity (Non-condensing)
Operating Temperature	-10℃ to 50℃
Storage Temperature	-15℃ to 60℃

Advantages and Features:

Pure sine wave inverter Output power factor
Selectable high-power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/Battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use of lithium batteries
Wave-by-wave phase detection, more stable and reliable
RS232 communication port and remote control panel optional
Dry contact communication port is available, pls confirm with the supplier

RS series is a pure sine wave power frequency inverter that converts direct current into alternating current. The equipment is safe and efficient, energy saving and environmental protection, fully functional, easy to install, simple to operate, intelligent and friendly, etc.

DC-AC inverter module adopts full digital intelligent design and outputs pure sine wave. Suitable for household appliances, power tools, industrial equipment, electronic audio and video and other AC load.

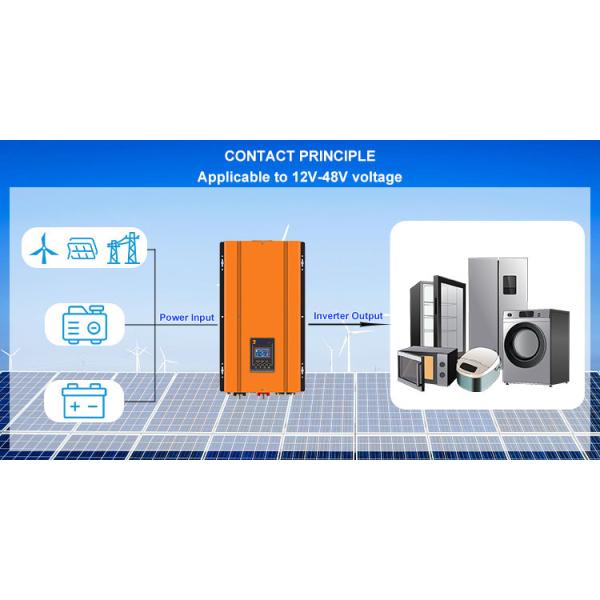

This is the common application of inverters, it also includes the following equipment can constitute a complete operating system • Generator or Utility. • PV modules Inverter can be applied to most home and office appliances, such as refrigerators, air conditioners, notebooks; Consult us for additional system architectures based on your requirements
