5.5KW Single Phase Output Pure Sine Wave AC Hybrid Solar Inverter with Optional WiFi/GPRS and Mppt

Name: 55KW Single Phase Output Pure Sine Wave AC Hybrid Solar Inverter with Optional WiFiGPRS and Mppt
Brand: SZSSTH
Price: 1 USD

Quality 5.5KW Single Phase Output Pure Sine Wave AC Hybrid Solar Inverter with Optional WiFi/GPRS and Mppt for sale

Brand Name : SZSSTH

Model Number : SUF5000S4A1

Place of Origin : Guangdong, China

Price : CN¥1,748.36/pieces 1-99 pieces

Input Voltage : 48V

Output Voltage : 220V 230V

Output Current : Load

Output Frequency : 50Hz/60Hz

Output Type : Single

Size : 300*450*110.5mm

Type : DC/AC Inverters

Inverter Efficiency : 93%

Weight : 8kg

Product name : 5.5KW Hybrid Solar Inverter

Inverter type : Hybrid Off Grid Solar Inverter

Controller type : MPPT Solar Controller

Communication : WiFi/GPRS(Optional)

Battery type : Lead Acid \ Lithium

Protection : Overload

Rated power : 5.5KW

AC Voltage : 230VAC

Display : LCD Display

Max PV voltage : 500V

Certificate : CE, ROHS

Warranty : 1 year

Contact Now

Products Description

Product Features

5.5KW Single Phase Output Pure Sine Wave AC Hybrid Solar Inverter with Optional WiFi/GPRS and Mppt

Compatible with most common low-voltage batteries (lead-acid and lithium batteries)
5K supports up to 9 units of parallel work
The maximum charging current reaches 120A
LCD screen, user inverter safety interaction design
Monitor through WiFi and app; Easy to collaborate with BMS

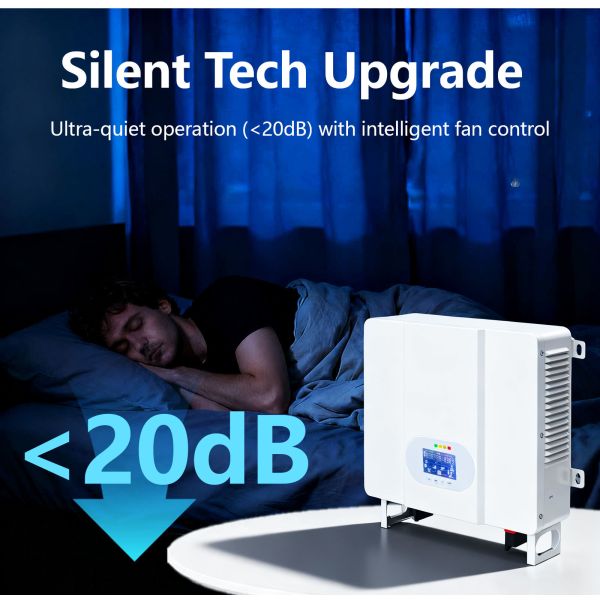

Intelligent Fan Cooling Design

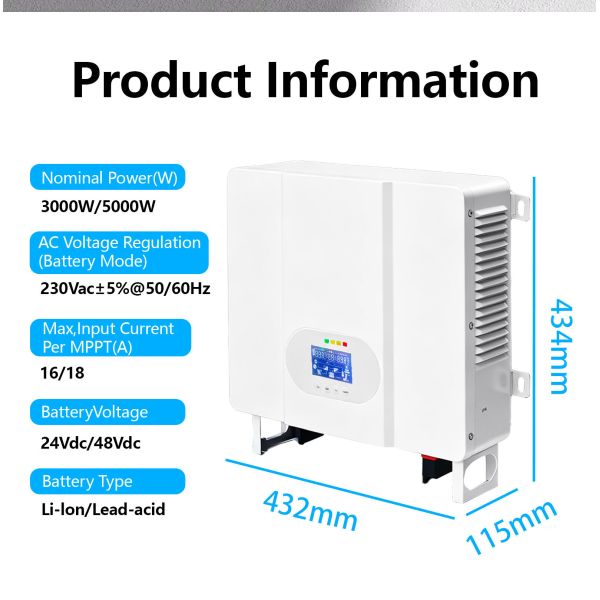

	SUF3000S4A1	SUF5000S4A1
BatteyInput
Battery Type	Li-lon/Lead-acid	Li-lon/Lead-acid
BatteryVoltage	24Vdc	48Vdc
Inverter Output
Nominal Power(W)	3000	5000
Nominal Apparent Power (VA)	3000	5000
Paralll Capacity	No	Yes.9 units maximum
AC Voltage Regulation (Battery Mode)	230Vac±5%@50/60Hz	230Vac±5%@50/60Hz
Surge Power (VA)	6000	10000
Eficiency (peak)	93%	93%
Waveform	Pure sine wave	Pure sine wave
Transfer Time	10ms (for personal computers), 15ms (for home appliances)
SolerCharge
Max.PV Array Power (W)	4000	6000
		6000
MPPT Range @OperatingVoltage	120Vdc-430Vdc	120Vdc-430Vdc
Number of Independent MPP Trackers	1	1
Number of Strings Per MPPT	1	1
Max,Input Current Per MPPT(A)	16	18
Max.PV Array Open Circuit Voltage (V)	500Vdc	500Vd
Max Solar Charge Current (A)	120	80
Ac Charger
Max.AC Charge Current(A)	120	80
AC Input Voltage (V)	230Vac	230Vac
Voltage Range (V)	170-280Vac (For PersonalComputers); 90-280 Vac(For Home Appliances)
Frequency Range(Hz)	50/60	50/60
General
UserInterface	APP+LCD Display+LED
Communication	USB,Optional:Wi-Fi,4G,GPRS,RS485/CAN,Dry-contact
Ingress Protection Rating	IP54	IP54
Dimension (WHD mm)	300450110.5	300450110.5
Weight (kg)	7.5 8
Relative Humidity	20%~95%	20%~95%
Max.Operating Altitude (m)	2000m, >1000m derating	2000m,>1000m derating
Operating Temperature (°C)	0~50	0~50
Storage Temperature (°C)	[-15~60]	[-15~60]
Protection
PV Over VoltageProtection	Yes
PV Over Current Protection	Yes
Battery Over Voltage Protection	Yes
Battery Over Current Protection	Yes
AC Surge Protection	Type II
Output OverCurrentProtection	Yes
Output Short Circuit Protection	Yes
Output OverVoltage Protection	Yes

5.5KW Single Phase Output Pure Sine Wave AC Hybrid Solar Inverter with Optional WiFi/GPRS and Mppt
