12V 2200VA MPPT Hybrid Solar Inverter Pure Sine Wave

12 V 2.2 kVA (2200 W) Off-Grid MPPT Pure Sine Wave Inverter – SP-2200

Overview

Power your off-grid or hybrid solar energy system with confidence using the SP-2200 inverter—a compact, highly efficient solution combining a pure sine wave inverter and MPPT solar charge controller, tailored for 12 V battery systems.

Key Features

• High-Efficiency Pure Sine Wave Output
  Delivers reliable, clean AC power (220–230 VAC, 50/60 Hz), ideal for sensitive electronics and appliances, with a notable efficiency of ~98 %.

• Built-In MPPT Solar Charger
  Supports a broad PV input voltage range (55–450 V DC) and a maximum PV open-circuit voltage of 450 V, offering flexibility and optimal harvesting in varied solar conditions.

• Multi-Mode Power Supply Priority
  Easily programmable to prioritize power from solar panels, battery, or grid—enhancing adaptability across different environments.

• Advanced Battery Support & Management
  Compatible with Lead-Acid, Lithium, and Gel batteries. Supports BMS communication for lithium-ion batteries and offers smart battery charging to extend lifespan.

• Safe & Reliable Operation
  Offers comprehensive protections including overload, high-temperature, inverter output short-circuit safeguards, a cold-start function, and intelligent fan-speed control.

• Remote Monitoring & Connectivity
  Standard RS-232/RS-485 interfaces, with optional Wi-Fi/GPRS connectivity, enable real-time monitoring and control via LCD and mobile apps on iOS and Android.

  MODEL	SP-2200	8P-3200	SP-4200	8P-4200	8P-7000
  Rated Power	2200VA/1800W	3200VA/3000W	4200VA/3800W	4200VA/3800W	7000VA/6200W
  INPUT
  Voltage	230VAC
  Selectable Voltage Range	170-280VAC(for personal computers) 90-280VAC(for home appliances)
  Frequency Range	50Hz/60Hz(Autosensing)
  OUTPUT
  AC Voltage Regulation(Batt.Mode)	230VAC±5%
  Surge power	4400VA	6400VA	8400VA	8400VA	14000VA
  Transfer Time	10ms(for personal computers) 20ms(for home appliances)
  Waveform	Pure SineWave
  BATTERY&AC CHARGER
  Battery Voltage	12VDC	24VDC	24VDC	48VDC	48VDC
  Floating Charge Voltage	13.5VDC	27VDC	27VDC	54VDC	54VDC
  Overcharge Protection	15.5VDC	31VDC	31VDC	61VDC	61VDC
  Maximum charge current	60A		80A	60A	80A
  SOLAR CHARGER
  MAX.PV Array Power	2000W	3000W	6000W
  MPPT Range@Operating Voltage	55-450VDC
  Maximum PV Array Open Circuit Voltage	450VDC
  Maximum Charging Current	80A		110A	80A	110A
  Maximum Efficiency	98%
  PHYSICAL
  Dimension.D*W*H(mm)	405*286*98mm		423*290*100mm	423*290*105mm
  Net Weight(kgs)	4.5kg	5.0kg	6.8kg	6.9kg	7.5kg
  Communication Interface	RS 232/RS 485(Standard) WIFI(Optional)
  OPERATING ENVIRONMENT
  Humidity	5%to 95%Relative Humidity(Non-condensing)
  Operating Temperature	-10"C to 55°C
  Storage Temperature	-15"Cto60C




12V hybrid solar inverter with MPPT

2200VA pure sine wave inverter

MPPT solar inverter 12V

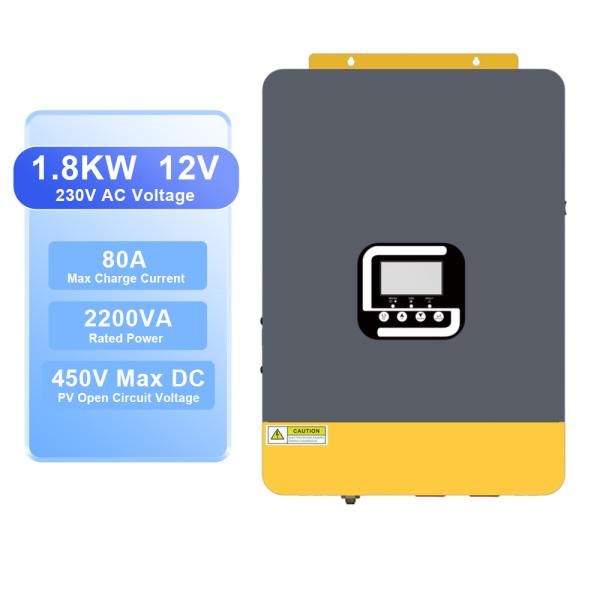

12V 2200VA MPPT Hybrid Solar Inverter Pure Sine Wave Images
